What is Spider Coupling and How Does it Work?
spider coupling is an essential component in various mechanical systems. It is known for its flexibility and ability to transmit torque. As per recent industry reports, about 30% of machinery failures stem from couplings. This emphasizes the need for reliable components like spider couplings.
These couplings are designed to accommodate misalignment and vibrations. In a market that is projected to grow by 5% annually, the demand for effective couplings is rising. spider couplings have gained popularity for their cost-effectiveness and durability. They are easy to install and maintain, offering significant operational benefits.
Despite their advantages, not all applications warrant the use of spider couplings. Users must consider specific system requirements. Choosing the wrong coupling can lead to performance issues. Continuous assessment of coupling performance is crucial. Therefore, understanding spider coupling is vital for engineers and operators alike.
What is Spider Coupling: Definition and Overview

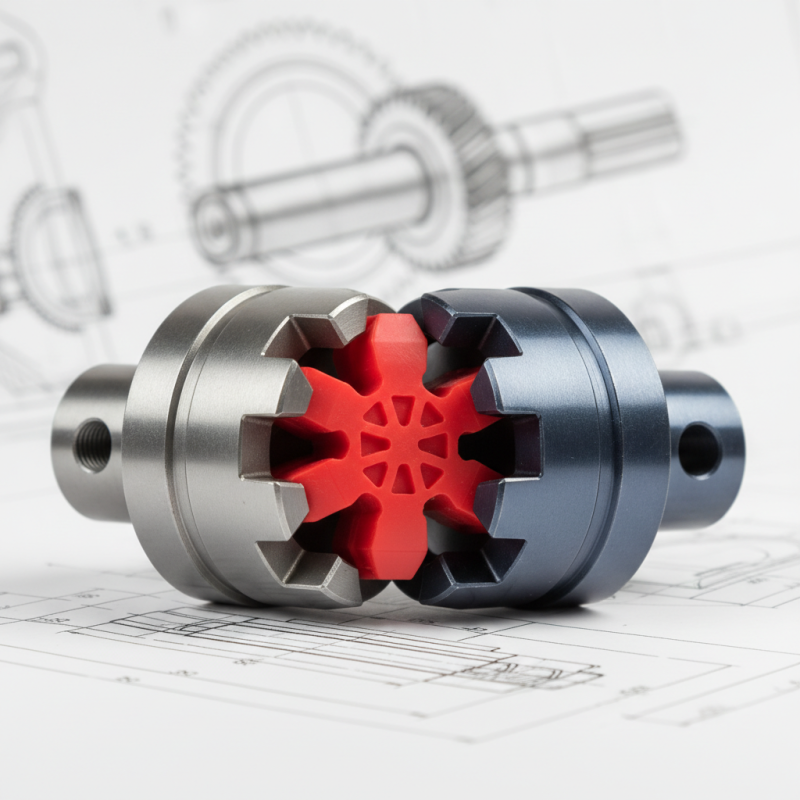

Spider coupling is a type of mechanical coupling used to connect two rotating shafts. It is designed to transmit torque while allowing for some misalignment. This flexibility makes it ideal for various applications in machinery. The coupling consists of two hubs and a spider insert, usually made of flexible material. This design absorbs shock and reduces wear on connected components.
The primary advantage of spider coupling is its ability to handle misalignment, which can occur during machine operation. Due to its flexible nature, the spider insert can compress and expand. This feature helps maintain a consistent torque transfer. However, improper installation can lead to potential failures. It's crucial to monitor the condition of the spider insert regularly.
While spider couplings are versatile, they are not without drawbacks. They may wear out faster under heavy loads. Users often overlook the maintenance of these components, leading to unexpected downtimes. Being proactive about checking wear and tear can save time. When considered carefully, spider couplings can enhance the performance of many industrial systems.
Key Components of a Spider Coupling System
Spider couplings are vital in various industrial applications. They enable flexibility and dampen vibrations in power transmission systems. A spider coupling consists of three main components: the hub, the spider, and the flange. The hub connects to shafts, while the spider acts as a flexible element. The flanges hold the entire structure together, providing stability.
The spider is usually made of durable materials like polyurethane or rubber. These materials absorb shocks and vibrations. According to a report from the Mechanical Engineering Journal, effective vibration reduction can enhance machine life by up to 30%. This is crucial in high-speed applications. However, improper installation can lead to what the report calls a "spider failure," resulting in costly downtimes and repairs.
Periodic maintenance is essential to ensure the system's efficiency. Routine checks can prevent wear and tear on the spider. Ignoring this aspect may cause unexpected breakdowns, highlighting the need for vigilance. Regular inspections can be beneficial in extending the life of the components. While spider couplings offer significant advantages, reliance on them without maintenance can be a major oversight for businesses.
How Spider Couplings Function in Mechanical Systems
Spider couplings are flexible devices used in various mechanical systems. They play a crucial role in transmitting torque between two shafts. The design typically features two hubs and a spider, which is a flexible element that connects them. This unique structure allows for some misalignment and absorbs vibrations. However, the flexibility can sometimes lead to wear and tear if not monitored.
In mechanical systems, spider couplings help maintain smooth operation. They reduce shock loads, protecting machinery components from damage. By allowing slight misalignments, they enhance the overall efficiency of power transmission. Yet, this flexibility may cause a loss of precision over time. Regular checks are essential to ensure optimal performance and alignment. Users often overlook the need for maintenance, which can lead to increased failure rates.
In some cases, spider couplings may not provide the necessary stiffness for heavy-duty applications. This limitation can be problematic in demanding environments. Different options are available in the market, but understanding the specific needs of a system is vital. Choosing the right coupling requires careful consideration, as improper selections can hinder functionality. It's a balancing act between flexibility and strength.
What is Spider Coupling and How Does it Work?
| Dimension | Description | Material Options | Common Applications |
| Torque Rating | Maximum torque the coupling can transmit without failure. | Rubber, Polyurethane, Aluminum | Electric motors, Gearboxes |
| Speed Rating | Maximum rotational speed the coupling can achieve safely. | Steel, Nylon | Pumps, Blowers |
| Misalignment Capacity | Amount of angular and parallel misalignment the coupling can accommodate. | Composite materials, Steel | Conveyor systems, Robotics |
| Damping Factor | Ability to absorb shock loads and vibrations. | Rubber, Polyurethane | Textile machinery, Printing presses |
Applications of Spider Couplings in Various Industries
Spider couplings play a vital role across various industries. They are essential for connecting shafts and absorbing shocks. These couplings are common in manufacturing, transportation, and even renewable energy. Their flexibility allows for smooth operation, reducing wear and tear on machinery.
In industrial applications, spider couplings support motors and gearboxes effectively. They help compensate for misalignment. This feature prevents damage and prolongs equipment life. Many factories rely on their durability for optimal workflow.
When choosing spider couplings, consider your specific needs. Material selection is crucial. Different applications require different properties. For high-torque systems, opt for robust materials.
Tips: Always check for compatibility with existing equipment. Regular maintenance is essential to ensure performance. Small oversight can lead to larger issues down the road. Addressing these concerns can save costs in the long run.
Applications of Spider Couplings in Various Industries
Advantages of Using Spider Couplings in Power Transmission Systems
Spider couplings are widely recognized for their role in power transmission systems. They offer several advantages that enhance the efficiency of machinery. One key benefit is their ability to absorb shock loads. According to engineering reports, around 20% of equipment failure is linked to shock loads. This means that spider couplings can significantly reduce wear and tear on components.
Another advantage is flexibility. Spider couplings allow for misalignment between the connected shafts. Research shows that up to 90% of shaft misalignments occur in industrial setups. This misalignment can lead to excessive vibrations and premature failure. However, spider couplings can accommodate these misalignments, improving operational reliability.
**Tips:** Always inspect spider couplings regularly. Look for signs of wear or damage. Replacement is crucial to maintain performance. Additionally, ensure proper alignment during installation. Misalignment can negate the benefits of using spider couplings. Simple checks can save time and costs down the line.
The choice of materials used in these couplings also impacts their overall performance. Some materials provide higher durability, while others may not withstand harsh conditions. It's worth noting that the initial cost of high-quality spider couplings can be higher. However, their longevity often leads to cost savings over time.
