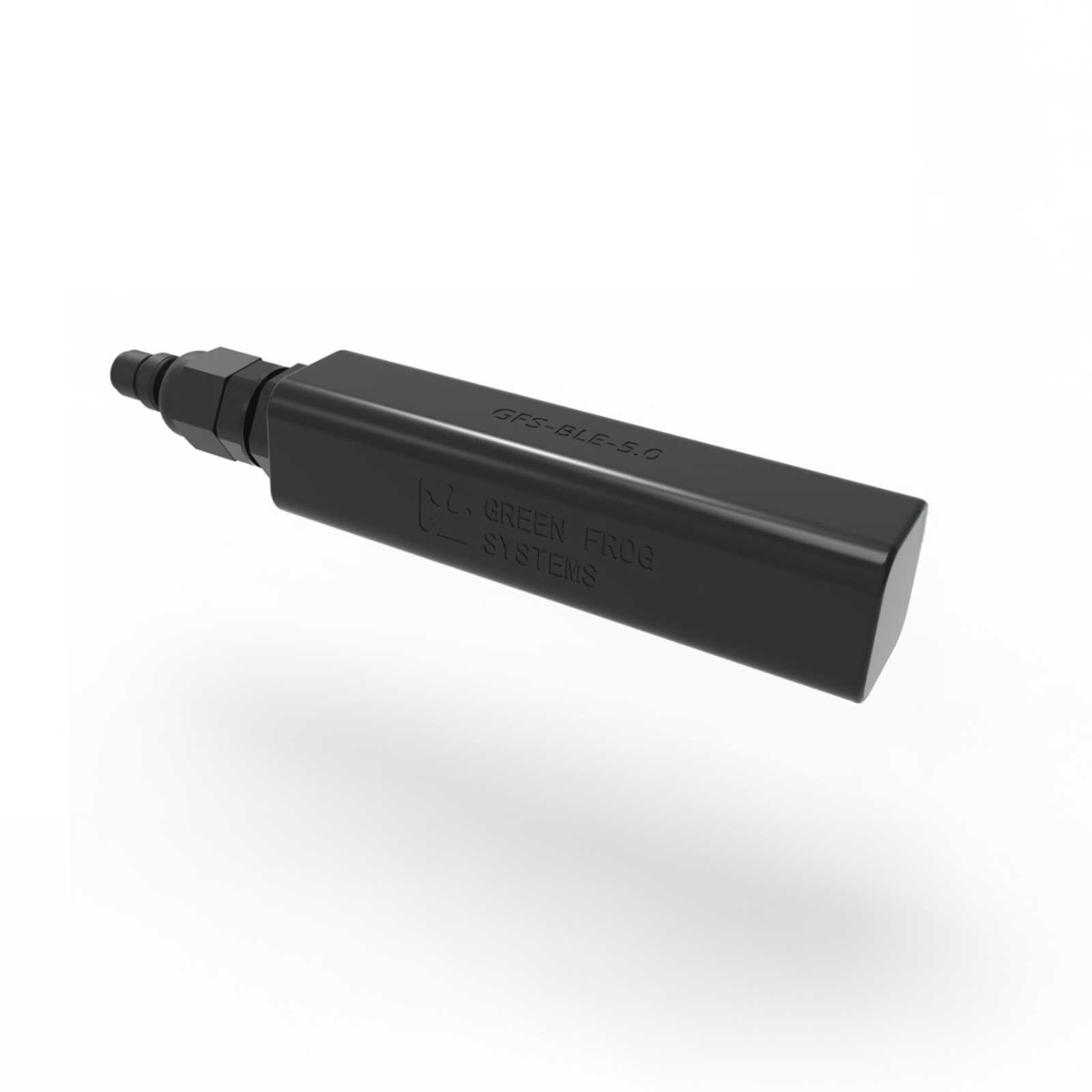

GFS-BLE-5.0

Bluetooth Module 5.0

Category:

Description

data sheetData sheet



Smarter Control for Solar Lighting

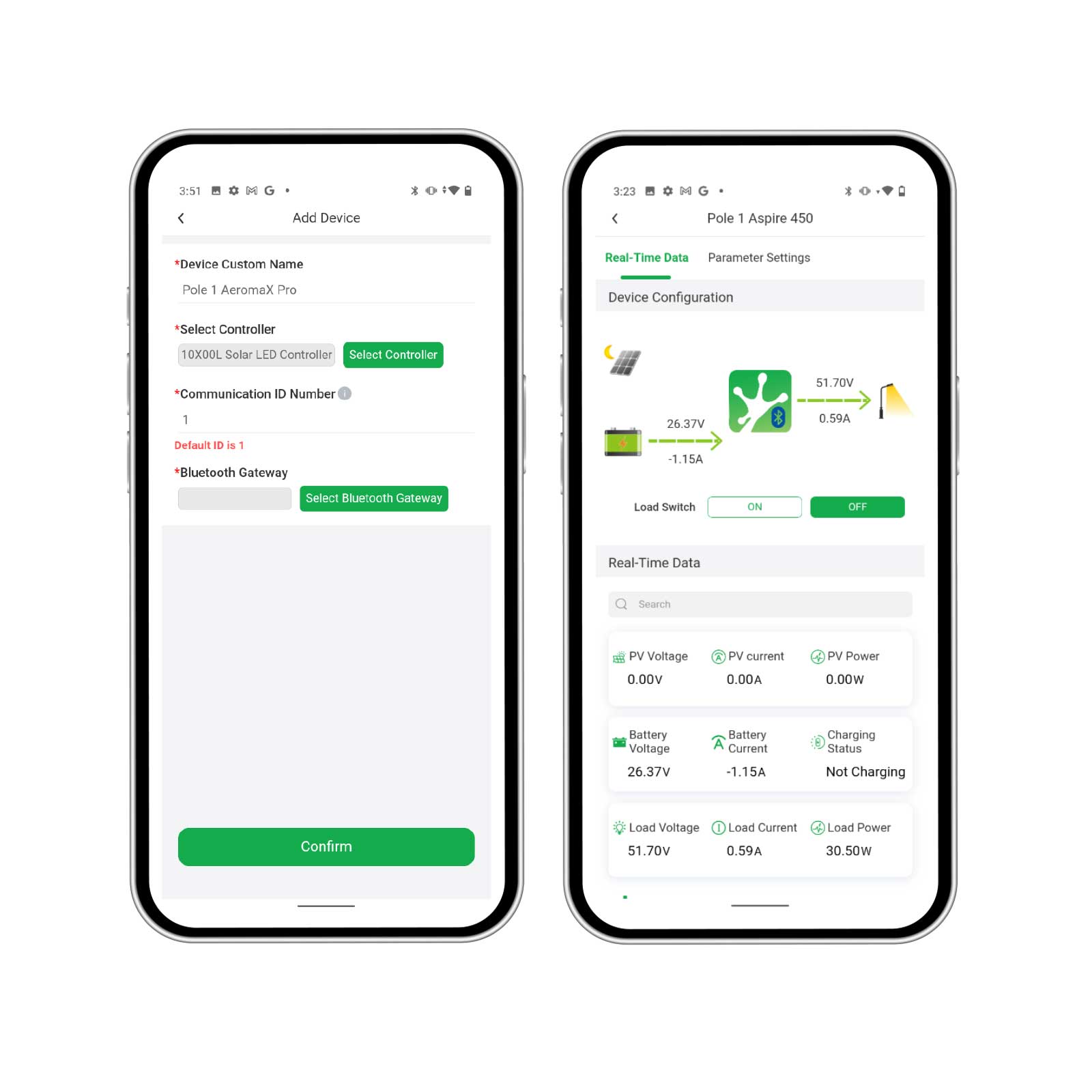

Upgrade your solar lighting and energy storage systems with the Bluetooth Module 5.0 from Green Frog Systems. Designed for seamless connectivity, this advanced module allows real-time monitoring and control via the digital hand controller (sold separately) —putting performance data and system settings right at your fingertips.

Featuring a flexible load profile and multiple operation modes, the Bluetooth Module 5.0 gives users the ability to tailor run times and behaviours to suit changing seasons or special events. Simplified maintenance workflows make it easier for asset owners and field crews to manage system health and performance more efficiently.

Whether it’s optimising energy usage or streamlining servicing, this module is a smart addition to any Green Frog Systems installation.

Technical

Part Number GFS-BLE-5.0
Communication protocol Bluetooth 5.0
Signal range ≤ 6m
Power consumption < 0.5W
Weight 250g (0,55lb)
Dimensions 195mm x 33mm x 33mm
7.68 x 1.3 x 1.3 inches
Operating temperature -20 °C to 70 °C
-4 °F to 158 °F
IP Rating IP67
Warranty 5 Years
Certifications FCC part 15C
CE EMC (EN 55032, EN55035,
EN61000-2-3, EN61000-3-3)
C-tick
RoHS 2
