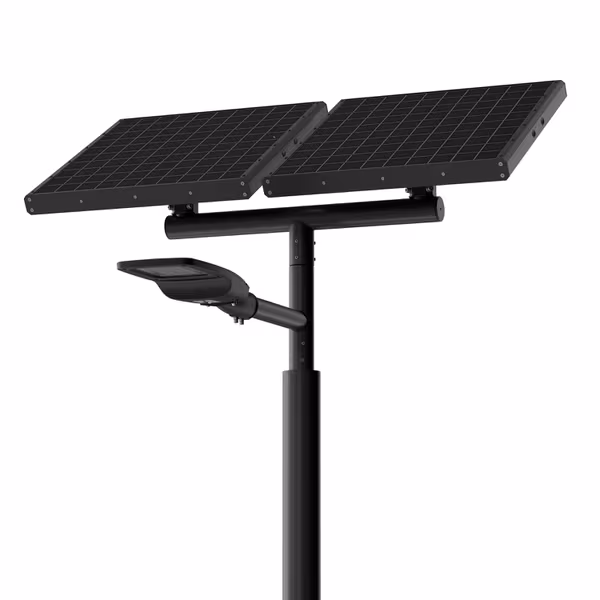

GFS-200

Solar Street Light

Categories: , ,

Description

install manualData sheet

Engineered in Australia to withstand some of the toughest environmental conditions, the GFS-200 is recognised as the most reliable and robust solar street light on the market. This virtually unbreakable lighting solution offers an environmentally friendly alternative to traditional lighting systems, which can be too costly or impractical to install. Selected consistently for its dependability the GFS-200 is suited to a wide variety of settings—from the remote outback to urban areas. Ideal for illuminating pathways, roadways, or car parks, the GFS-200 series delivers exceptional performance and reliability.

Technical

Typical Power /
Delivered Lumens (1)
15W / 2387 lm
30W / 4687 lm
PIR (Sensor) N/A
PIR Power Options N/A
Default CCT 4000K
CCT Options 3000K, 590nm Turtle Friendly
Default Optics (LEDiL) T2
Other Optics Option (LEDiL) T3, T4, T5
IP Rating IP66 / IP68 Connectors
IK Rating IK08
Solar Panel 227Wp
Panel Efficiency Rating 22%
Battery Type Sealed GEL 24V
Battery Capacity 220Ah / 2640Wh (2 batteries)
Estimated Autonomy (APS)* 3 – 7+ Nights
Mounting / Arms Pole / Single or Twin
Mount Heights 6m with 1.2m arm
9m with 3.0m arm
Typical Spacing 25 – 65m
Operational Temp Range -20° to +60°C
Expected Lifetime 100,000 hours (L90 B10)
Certifications CE, ANSI C136.31, ISO9001
Warranty 6 + 10* years
*Warranty period is listed as– Complete Unit + Battery (Pro-rata)–Full warranty details are available upon request at: https://greenfrogsystems.com.au/contact
**Advanced Power Scaling (APS) dynamically adjusts LED output to maintain a preset brightness level throughout the night. If the system detects that battery capacity will not last until morning, it automatically reduces the LED power to a safe minimum level. By doing so, APS ensures extended operation and reliable lighting performance even under challenging winter conditions. | (1)Power and delivered lumens are dependent on location | ^Slip Base Assembly | Other pole heights available on request
