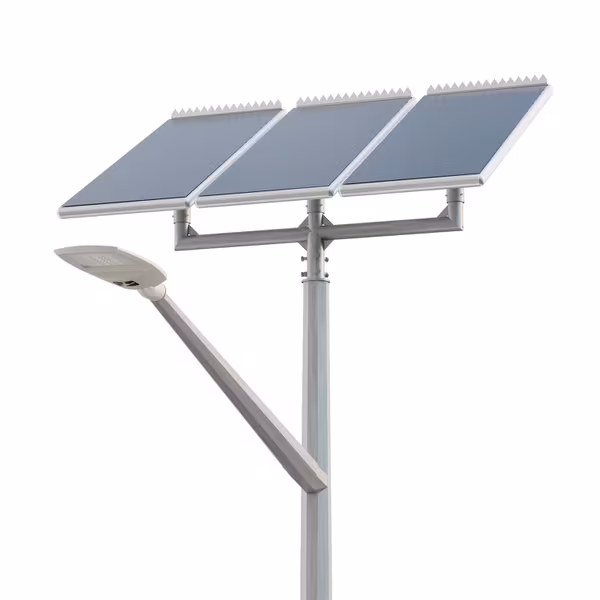

GFS-400

Solar Street Light

Categories: , ,

Description

install manualData sheet

The GFS-400 delivers a powerful, off-grid lighting solution, ideal where traditional lighting systems are too costly or impractical. Renowned for its reliability and all night high-power output, this model is a top choice among local governments, construction, transport and mining sectors throughout Australia. It excels in providing superior illumination for roadways, car parks, intersections, and perimeter security areas, offering high performance without the cost or complication of grid connection and supply.

Technical

Typical Power /
Delivered Lumens(1)		 45W / 5743 lm
60W / 7228 lm
75W / 8545 lm
PIR (Sensor) N/A
PIR Power Options N/A
Default CCT 4000K
CCT Options 3000K, 590nm Turtle Friendly
Default Optics (LEDiL) T3
Other Optics Option (LEDiL) T2, T4, T5
IP Rating IP66 / IP68 Connectors
IK Rating IK08
Solar Panel 450Wp
Panel Efficiency Rating 22%
Battery Type Sealed GEL 24V
Battery Capacity 220Ah / 2640Wh (2 batteries)
Estimated Autonomy (APS)* 3 – 7+ Nights
Mounting / Arms Pole / Single or Twin
Mount Heights 6m with 1.2m arm
9m with 3.0m arm
10.5m SBA* with 4.5m arm
Typical Spacing 20 – 50m
Operational Temp Range -20° to +60°C
Expected Lifetime 100,000 hours (L90 B10)
Certifications CE, UL1598, ANSI C136.31, ISO9001
Warranty 6 + 10* years
*Warranty period is listed as– Complete Unit + Battery (Pro-rata)–Full warranty details are available upon request at: https://greenfrogsystems.com.au/contact
**Advanced Power Scaling (APS) dynamically adjusts LED output to maintain a preset brightness level throughout the night. If the system detects that battery capacity will not last until morning, it automatically reduces the LED power to a safe minimum level. By doing so, APS ensures extended operation and reliable lighting performance even under challenging winter conditions. | (1)Power and delivered lumens are dependent on location | ^Slip Base Assembly
