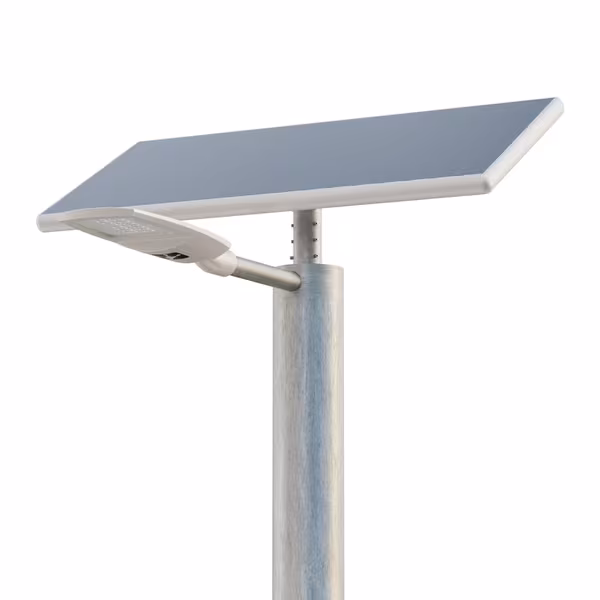

Defender

All-In-One Solar Light

Category:

Description

datasheetData sheet

The DEFENDER is Green Frog Systems’ most advanced medium-duty solar light, equipped with adjustable-angle LEDs for optimal illumination and twin PIR sensors for enhanced detection range. This all-in-one unit features a nano-particle LifePo4 battery with passive cell balancing technology and a programmable solar controller, ensuring peak performance and reliability in a variety of settings. Designed for efficiency and durability, the DEFENDER offers a sustainable lighting solution without the need for mains power.

Technical

Typical Power /
Delivered Lumens (1)		 2.5W / 474 lm
4W / 776 lm
10W / 1734 lm
PIR (Sensor) +19W (+2879 lm)
Default CCT 4000K
CCT Options 3000K, 590nm Turtle Friendly
Default Optics (LEDiL) T2
Other Optics Option (LEDiL) T3, T4, T5
IP Rating IP66
IK Rating IK08
Solar Panel 32Wp
Panel Efficiency Rating 22%
Battery Type LiFePO4 12.8V
Battery Capacity 24Ah / 307.2Wh
Estimated Autonomy (APS)* 4 – 8+ Nights
Mounting / Arms Pole / Wall
Mount Heights 4.5m / 6m
Typical Spacing 12 – 44m
Operational Temp Range -20° to +60°C
Expected Lifetime 100,000 hours (L90 B10)
Certifications CE, ISO9001
Warranty 6 + 10* years
*Warranty period is listed as– Complete Unit + Battery (Pro-rata)–Full warranty details are available upon request at: https://greenfrogsystems.com.au/contact
**Advanced Power Scaling (APS) dynamically adjusts LED output to maintain a preset brightness level throughout the night. If the system detects that battery capacity will not last until morning, it automatically reduces the LED power to a safe minimum level. By doing so, APS ensures extended operation and reliable lighting performance even under challenging winter conditions. | (1)Power and delivered lumens are dependent on location | Other pole heights available on request
